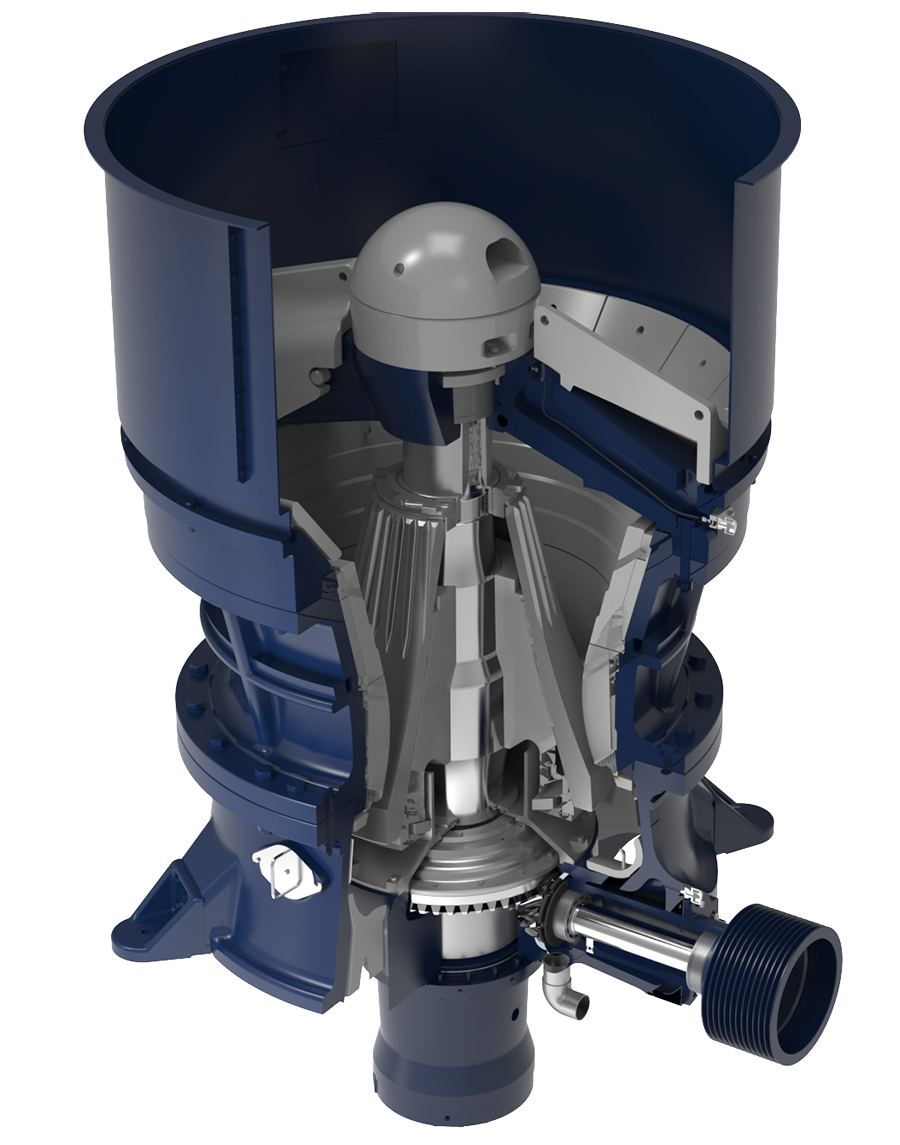

Cone Crusher HCC F-Series – a Floating Shaft (Top-Supported) Cone Crusher
Cone Crusher HCC F-Series – the ideal solution for demanding secondary and tertiary applications in quarries, mining, or recycling.
A floating-shaft cone crusher is preferably used in:
Secondary and tertiary crushing stages requiring high reduction and precise grain shaping, hard rock crushing basalt, granite, quartzite, sandstone, river pebble, mining applications with hard and abrasive ores, including precious metals (gold, silver, palladium), plants with variable CSS settings and a need for flexibly adjustable product grain size, processes with medium to high throughput requirements where shape quality and controlled grain distribution are crucial.
It is the ideal choice when high reduction ratios, precise adjustability, good grain shape (cubic) and general versatility are the focus – especially in hard rock, ore and high-quality aggregate production.
Key Technology Advantages
- Floating Main Shaft
For dynamic crushing action and even material stress ensuring excellent grain shape and consistent performance. - Quick Gap Adjustment
Hydraulically or automatically adjustable for optimum product size and maximum plant availability. - Maintenance-Optimized
The design with top-mounted shaft allows quick access to bearings and wear parts – for minimal downtime. - Robust Construction
Ideally suited for hard rock and changing operating conditions even under high loads. - This design enables the crusher to operate at peak efficiency – delivering maximum throughput with minimal wear and lower operating costs.

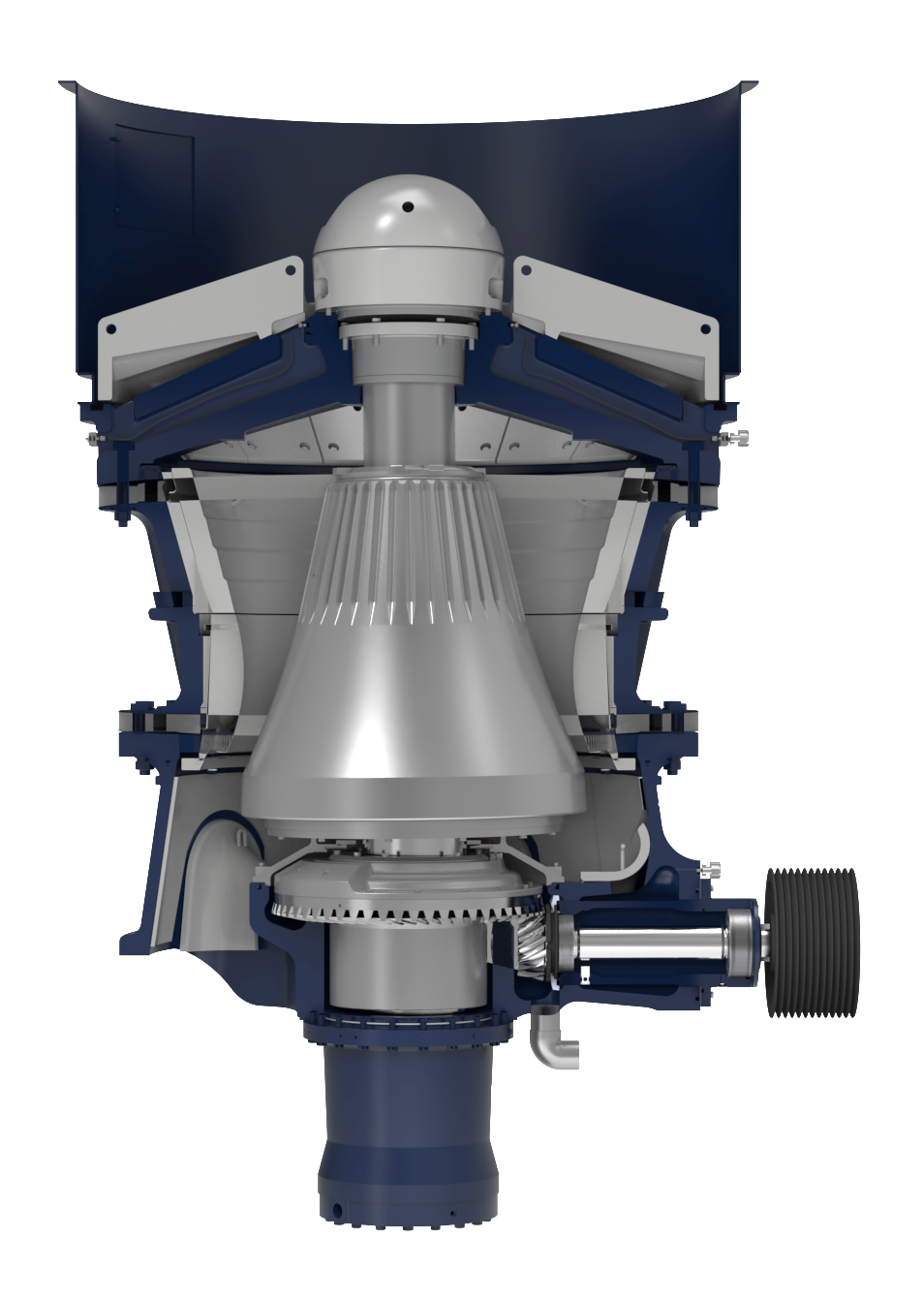

Cone Crusher HCC F-Series – Key Design Advantages
- Correct selection of crushing mantle
Ensures the right profile for the specific application and material. - Controlled feed rate
Prevents overloading and maintains consistent crushing efficiency. - Uniform feed distribution within the crushing chamber
Promotes balanced wear and optimized crushing action. - Integrated automation and process control
Enables real-time adjustment for stable performance and improved safety. - Adequate discharge area clearance
Avoids material buildup and ensures continuous material flow.
Maximum Productivity – Enhance Capacity and Performance
- Correct selection of crushing mantle
Ensures the right profile for the specific application and material. - Controlled feed rate
Prevents overloading and maintains consistent crushing efficiency. - Uniform feed distribution within the crushing chamber
Promotes balanced wear and optimized crushing action. - Integrated automation and process control
Enables real-time adjustment for stable performance and improved safety. - Adequate discharge area clearance
Avoids material buildup and ensures continuous material flow. - Properly sized discharge conveyor
Supports the full output capacity of the crusher without restriction. - Appropriate use of scalping and closed-circuit screening
Removes fines and oversize effectively, maximizing throughput and product quality.
Technical Details – Model Range

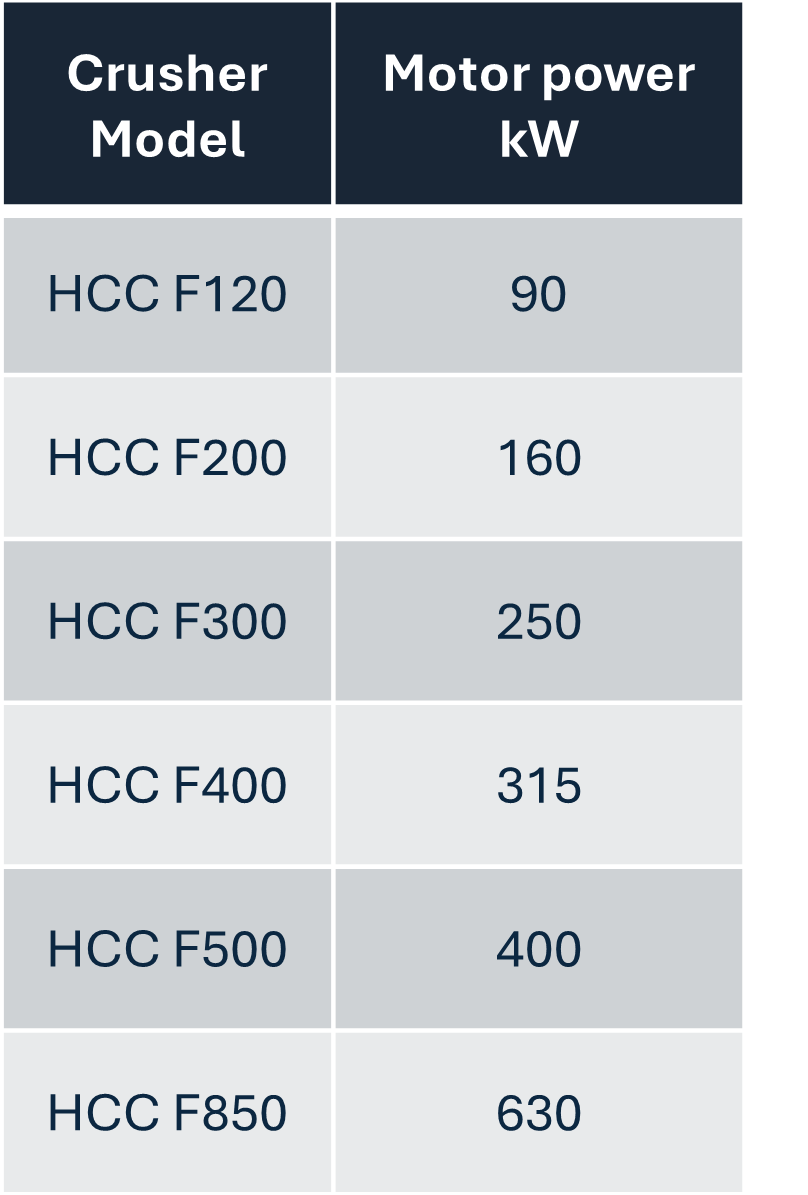

Design Secondary

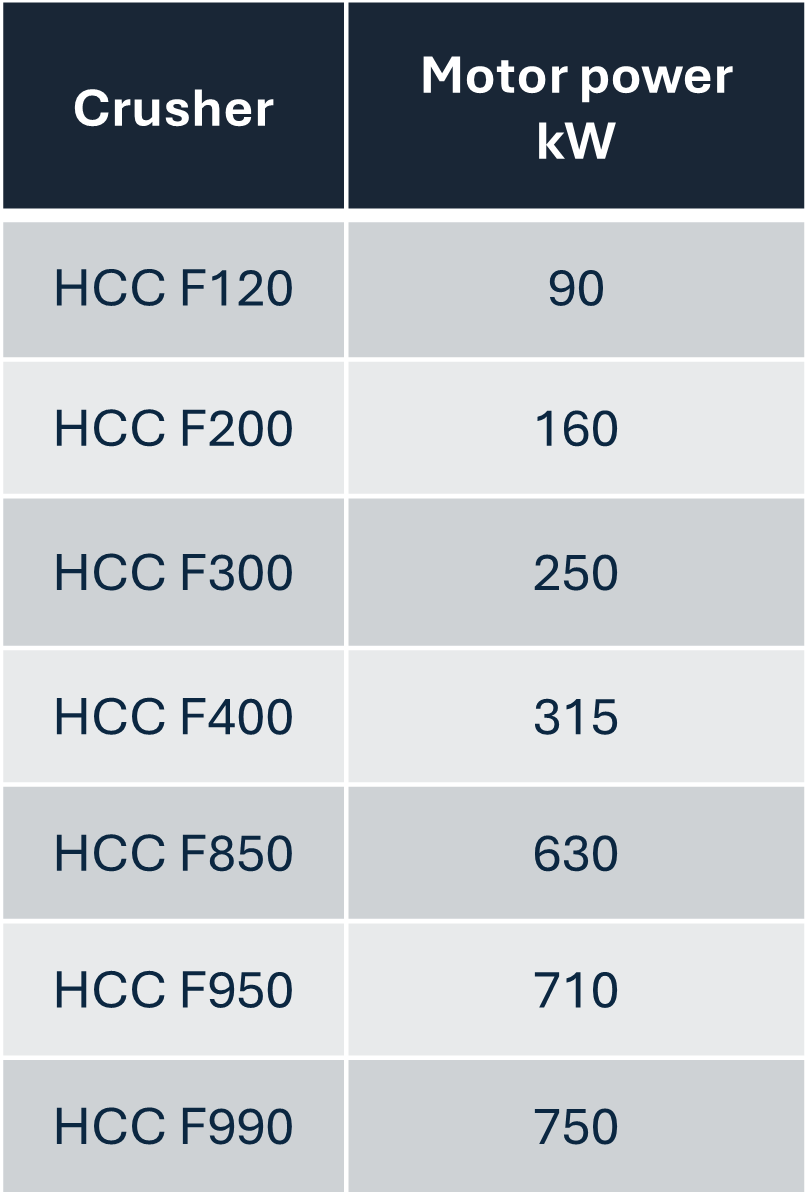

Design Tertiary

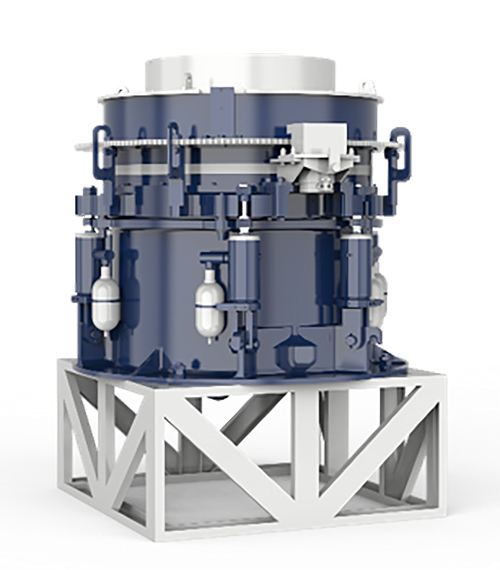

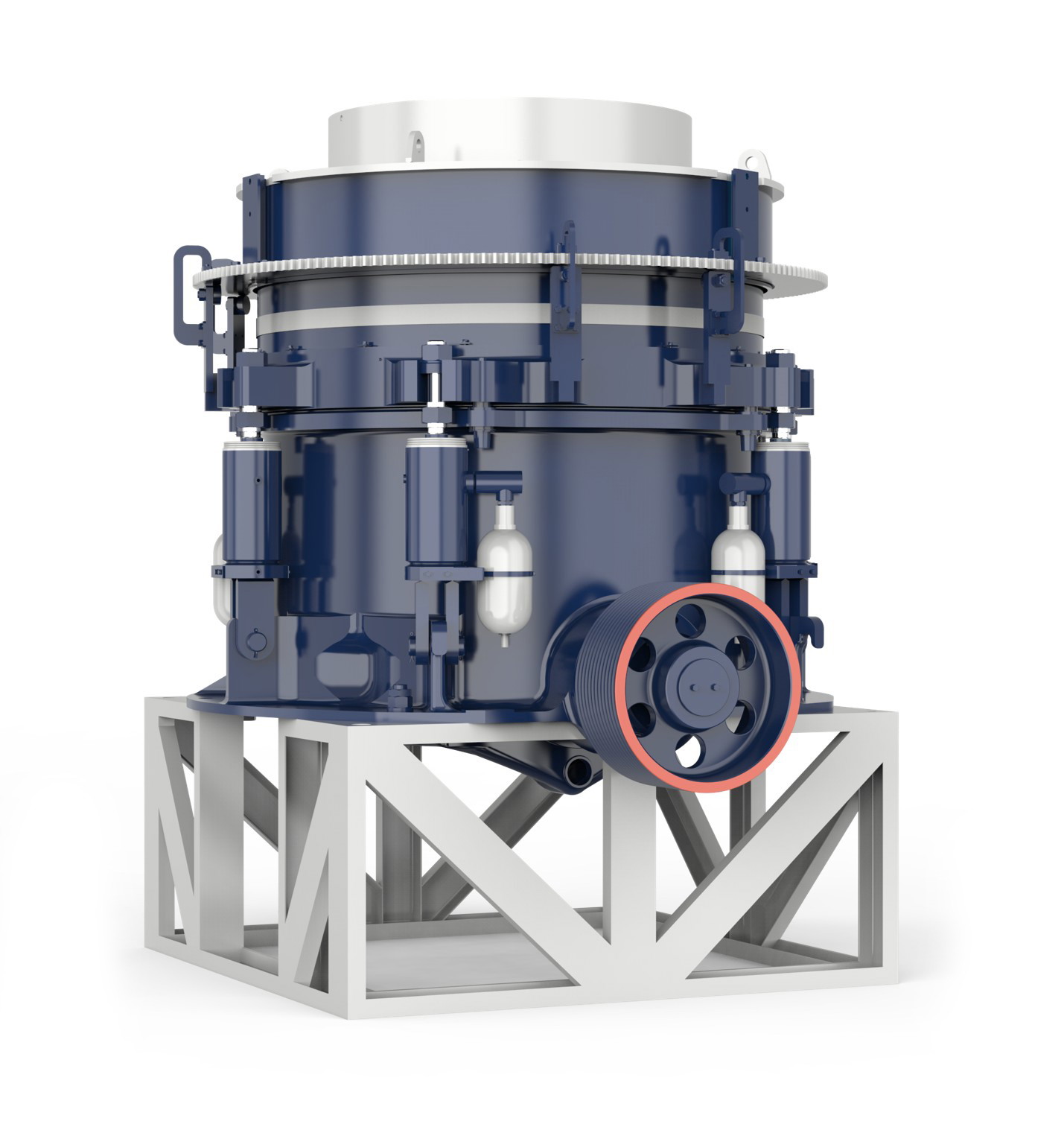

Cone Crusher HCC P-Series – a Pedestal-Mounted (Raised Base) Cone Crusher
Cone Crusher HCC P-Series – widely used in the mining and construction materials industries.
A pedestal-mounted (raised-base) cone crusher is preferred for use in:
Secondary, tertiary and quaternary stages, hard rock crushing and aggregate production, mining: precious metals, base metals, hard ore minerals, dry, well-classified feed material, high-throughput plants with requirements for cubic grain sizes.
It is the ideal choice when the focus is on higher performance, high shape quality, robust machine rigidity and large crushing volumes.
Fixed-shaft cone crushers work best with dry, screened and well-graded materials. Ideal when there is little moisture in the feed material.
Key Technology Advantages
- Fixed Main Shaft for Maximum Output
Stable shaft design enables higher eccentric throw and speed for increased throughput and efficiency. - Advanced Hydraulic Safety System with Cylinder & Accumulator
Instant response to overloads protects key components and reduces potential damage. - Independent Oil Cylinders for Cavity Clearing
Separated functions enhance hydraulic stability and reliability. - Hydraulic Locking of the Adjustment Ring
Secure locking at the push of a button—fast, safe, and low‑effort. - Hydraulic Adjustment of the Discharge Opening
Hydraulic motor enables fast, precise setting adjustment without on‑site intervention. - Integrated Base Structure
Modular base with integrated motor and drive for easier installation and improved usability. - Optimized Crushing Chamber for Higher Capacity
Longer stroke and higher reduction ratios deliver better shape, consistent quality, and reduced energy use.
Cone Crusher HCC P-Series – Key Design Advantages
- Fixed Main Shaft & Optimized Crushing Chamber
Robust construction for heavy loads and continuous operation. - Consistent Particle Size & Improved Product Shape
Uniform output with superior grain quality. - Fully Hydraulic Standard Configuration
Simple operation, flexible adjustment, and fast response. - Independent Single-Cylinder Design
Stable system performance and reliable operation. - Integrated Base Structure
Simplified installation and reduced setup time.

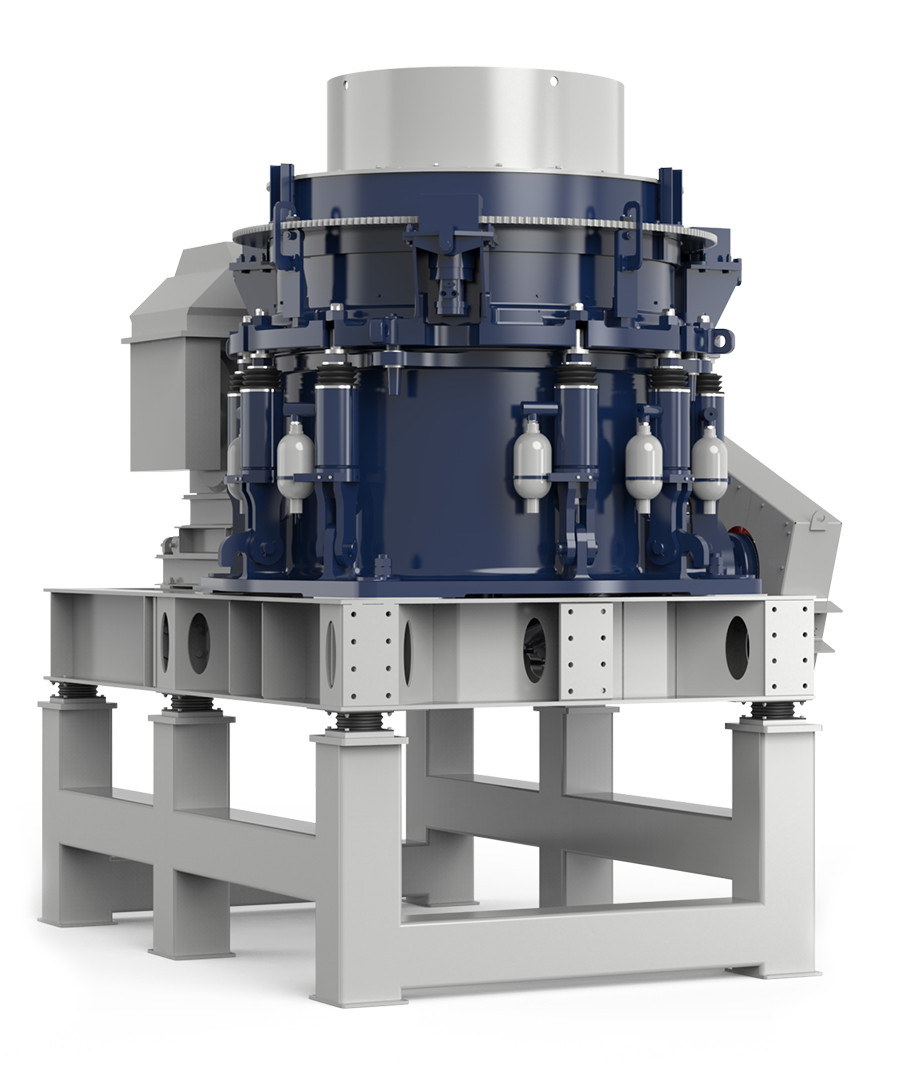

Maximum Productivity – Applications With High Throughput Requirements
Fixed-shaft models are designed for:
- Larger crushing volumes
- Higher production rates
- Improved cubic grain shape
This makes them particularly attractive for:
- Large quarrying operations
- Large ore processing plants
- Industrial mineral processing with high tonnage per hour
Whether in quarries, building material production, or industrial applications—this cone crusher delivers powerful performance, user-friendly maintenance, and long-term reliability.

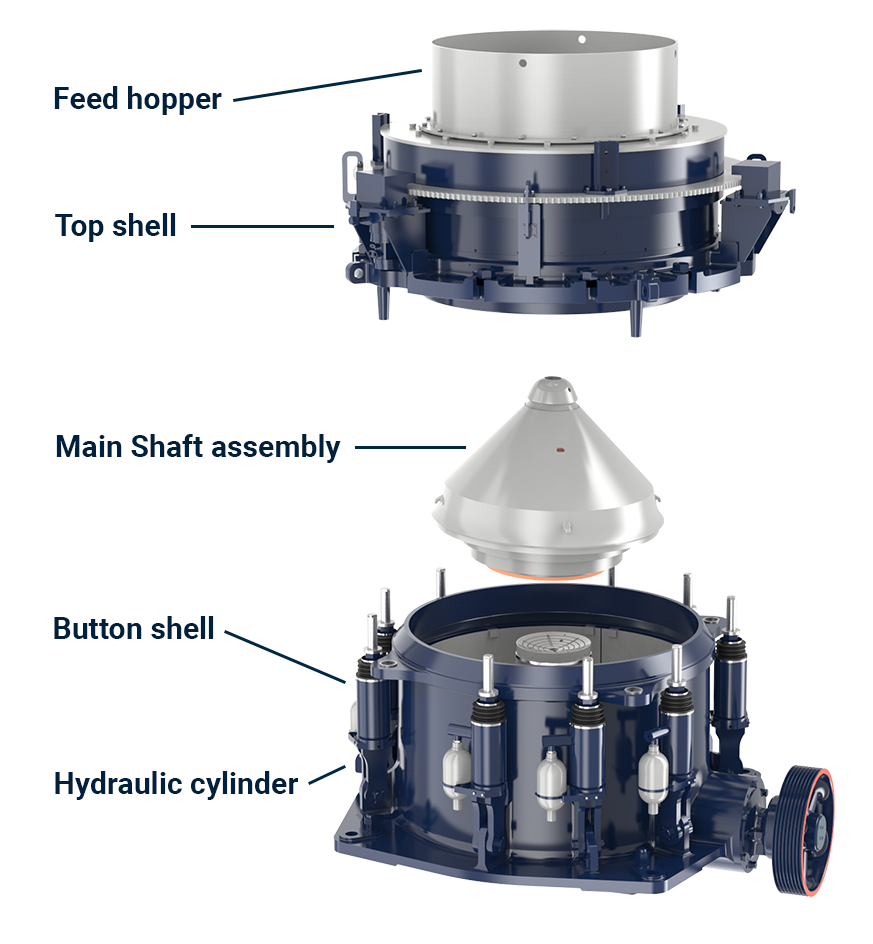

Cone Crusher HCC P-Series – Major Components

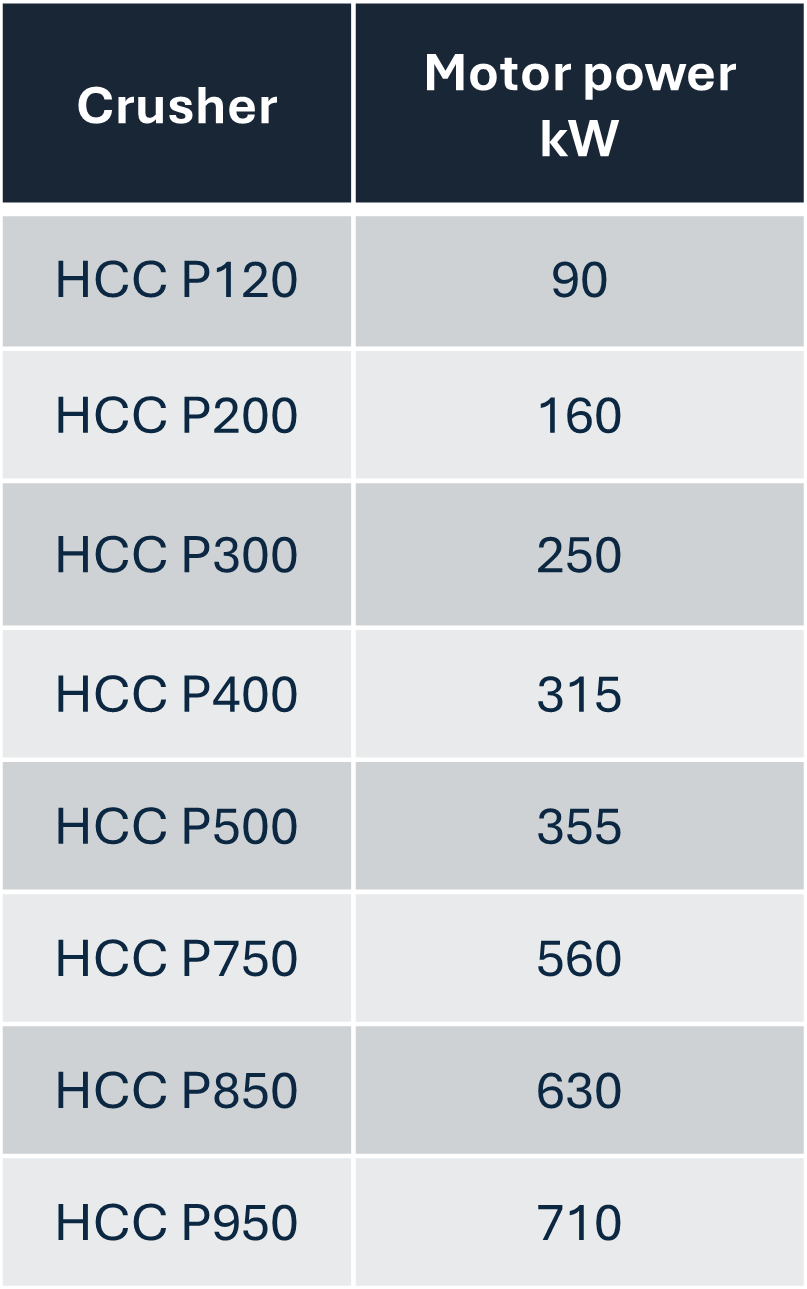

Technical Details – Model Range
