High Reduction Ratio and Energy-Efficient Processing for Maximum Plant Performance
The impact crusher is a key technology for crushing medium-hard to hard rock. With its high reduction ratio, it efficiently processes large feed material and prepares it for downstream processes. Typical applications include the cement industry, aggregates production and the recycling of construction materials and demolition waste.

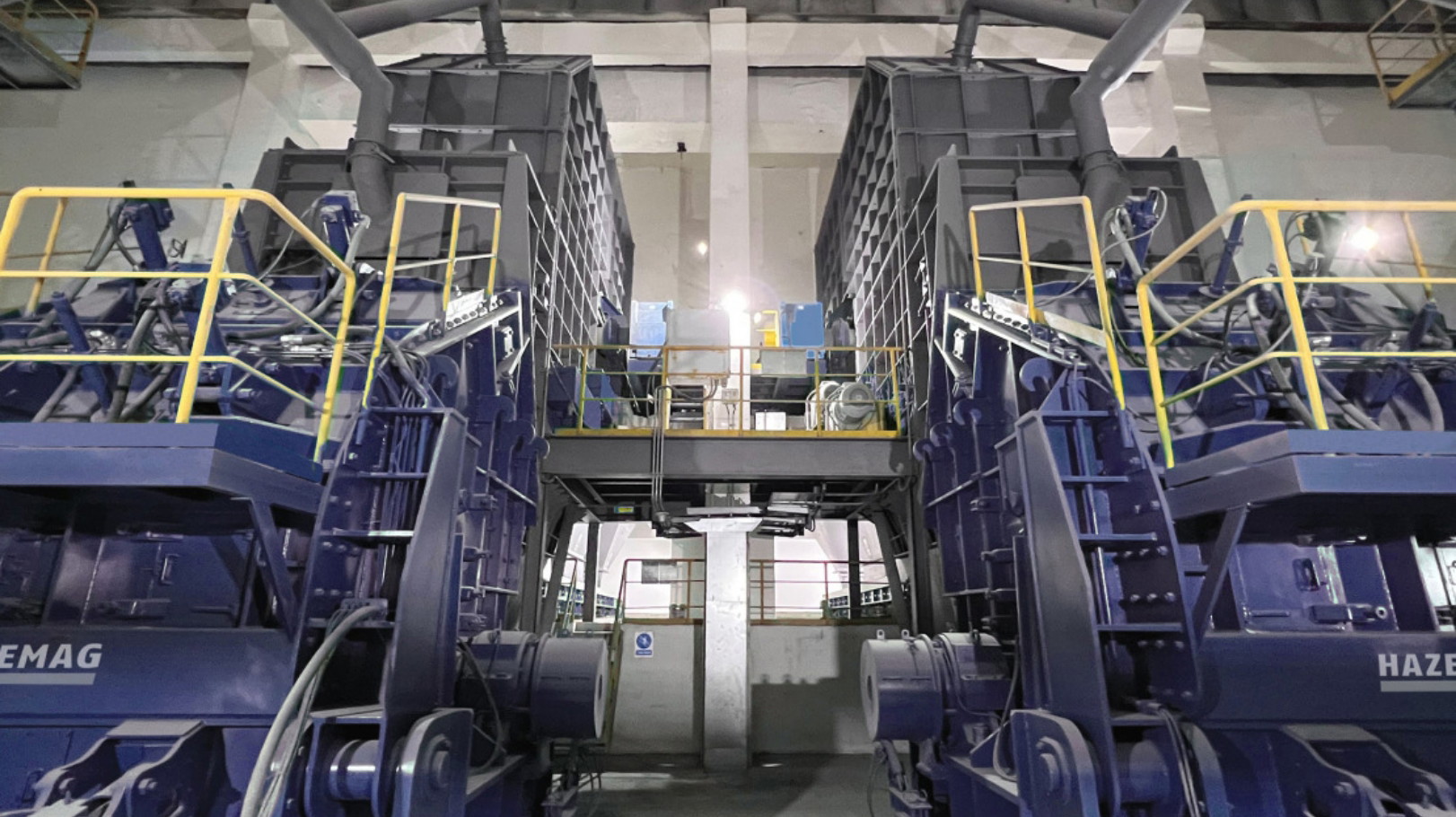

HAZEMAG impact crushers such as the HPI series are designed to reliably process even very large rock pieces while ensuring a uniform particle size distribution. This precise material preparation forms the basis for efficient downstream processing, for example in vertical mills or further crushing and screening stages.
Thanks to optional features such as hydraulic adjustment systems or the innovative HAZtronic electronic control system, operation and maintenance can be carried out flexibly and safely. The result is high throughput capacity, maximum plant availability and energy-efficient crushing, delivering both economic and environmental benefits.
Your Advantages of the PRIMARY IMPACT CRUSHER at a Glance
- High reduction ratio: The primary impact crusher ensures efficient pre-crushing of large feed material – up to 3 m³ – while maintaining a consistent product size and high throughput.
- Optional grinding path: Depending on the application, the crusher can be operated with or without a grinding path, allowing precise control of particle size distribution and effective limitation of oversize material.
- Energy-efficient and economical: The optimized HAZEMAG drive system significantly reduces energy consumption and lowers operating costs, even in demanding continuous operation.

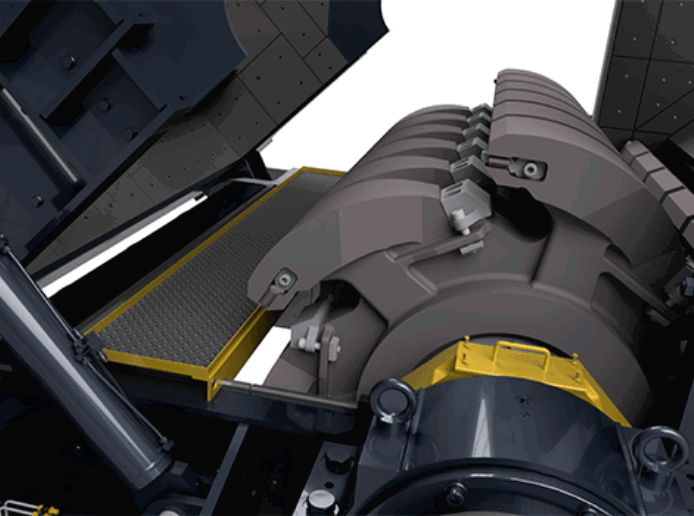

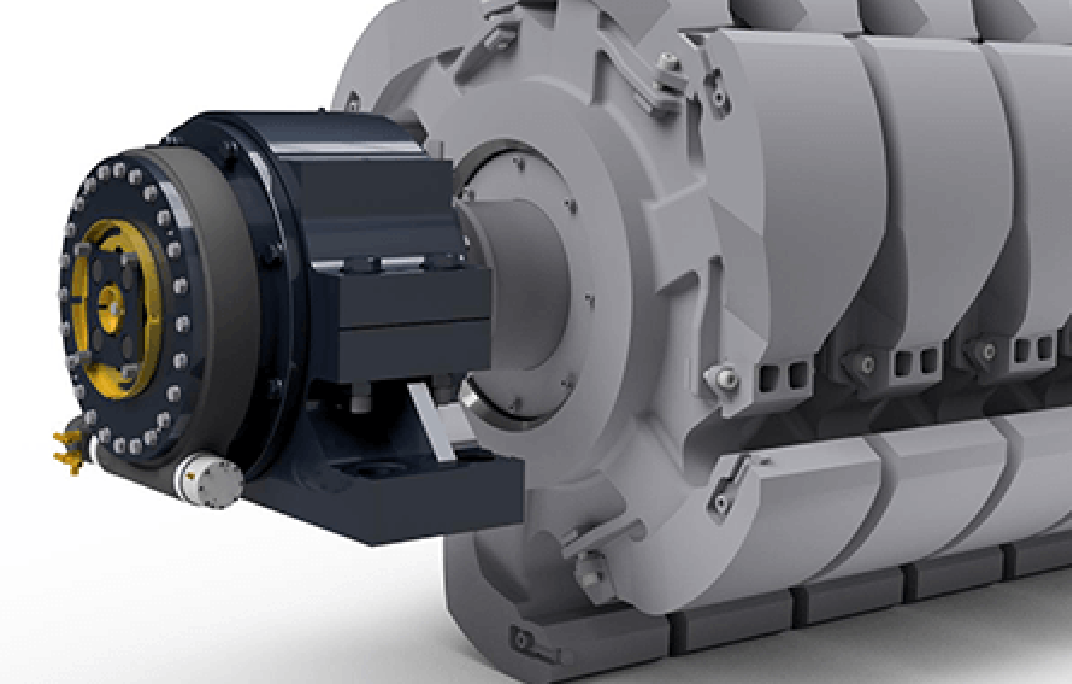

- Robust construction: The patented GSK rotor cast-welded structure and wear-optimized blow bars ensure long service life and reliable performance – even when processing abrasive materials.
- Easy maintenance: Thanks to wedge fixing systems and hydraulic adjustment, blow bars, grinding paths and impact aprons can be replaced quickly without fully emptying the crushing chamber. This minimizes downtime and simplifies regular inspections.
175 Years
Engineering
expertise
More than
75,000
installations
worldwide
Impact Crushers for Your Project – Direct from HAZEMAG
HAZEMAG offers tailor-made solutions for a wide range of applications – from the cement industry to recycling. Our impact crushers combine high efficiency, durable construction and reliable service, delivered directly by the manufacturer.
Technical Data and Particle Size Curve PRIMARY IMPACT CRUSHER HPI | HPI Series
Technical Data without Grinding Path | HPI Series
The following overview shows the available versions of the HPI primary impact crusher without grinding path. It includes key performance data for system design, such as throughput capacity, drive power, inlet dimensions and maximum feed size. These values support the selection of the appropriate machine size depending on material characteristics, target product size and plant layout.
PRIMARY IMPACTOR | HPI
| Model | Capacity t/h | Power Requirements kw | Inlet Size mm (H x W) | Maximum Feed Size m³ (mm) | Rotor Size mm (D x W) | Weight kg |
|---|---|---|---|---|---|---|
| HPI 1622 | 770 | 710 | 1.290 x 2.270 | 1.4 (1.200) | 1.640 x 2.250 | 65.000 |
| HPI 1822 | 1.100 | 1.100 | 1.600 x 2.270 | 2 (1.400) | 1.800 x 2.250 | 76.000 |
| HPI 2022 | 1.350 | 1.250 | 1.830 x 2.270 | 2.2 (1.600) | 2.000 x 2.250 | 94.500 |
| HPI 2025 | 1.550 | 1.400 | 1.290 x 2.520 | 2.3 (1.600) | 2.000 x 2.500 | 102.500 |
| HPI 2030 | 2.000 | 1.900 | 1.290 x 3.020 | 2.4 (1.600) | 2.000 x 3.020 | 119.000 |
| HPI 2225 | 1.650 | 1.500 | 2.000 x 2.520 | 2.4 (1.600) | 2.200 x 2.500 | 117.000 |
| HPI 2230 | 2.150 | 2.000 | 2,000 x 3.020 | 2.5 (1.700) | 2.200 x 3.000 | 129.000 |
| HPI 2530 | 2.500 | 2.700 | 2.125 x 3.020 | 3 (1.900) | 2.500 x 3.000 | 162.500 |
Technical Data with Grinding Path | HPI Series
The following table presents the technical specifications of the HPI primary impact crusher with grinding path. The data illustrates how throughput capacity, power requirements and permissible feed sizes change when additional oversize control is applied. This enables precise machine selection for applications where controlled pre-crushing and a more defined particle size distribution are required.
PRIMARY IMPACTOR HPI WITH GRINDING PATH
| Model | Capacity t/h | Power Requirements kw | Inlet Size mm (H x W) | Maximum Feed Size m3 (mm) | Rotor Size mm (D x W) | Weight kg |
|---|---|---|---|---|---|---|
| HPI 1622 | 770 | 900 | 1.290 x 1.520 | 1.4 (1.200) | 1.640 x 2.250 | 66.000 |
| HPI 1822 | 1.100 | 1.200 | 1.290 x 2.270 | 2 (1.500) | 1.800 x 2.250 | 78.000 |
| HPI 2022 | 1.350 | 1.500 | 1.600 x 2.270 | 2.2 (1.600) | 2.000 x 2.250 | 96.000 |
| HPI 2025 | 1.550 | 1.700 | 1.830 x 2.270 | 2.3 (1.600) | 2.000 x 2.500 | 104.000 |
| HPI 2030 | 2.000 | 2.250 | 1.290 x 2.520 | 2.4 (1.600) | 2.000 x 3.000 | 120.000 |
| HPI 2225 | 1.650 | 1.800 | 2.000 x 2.520 | 2.4 (1.600) | 2.200 x 2.500 | 118.000 |
| HPI 2230 | 2.150 | 2.400 | 2.000 x 3.020 | 2.5 (1.700) | 2.200 x 3.000 | 130.000 |
| HPI 2530 | 2.500 | 2.700 | 2.125 x 3.020 | 3 (1.900) | 2.500 x 3.000 | 164.000 |
Particle Size Curve without Grinding Path | HPI Series
The particle size curve shows the typical screening curve of the HPI primary impact crusher when operating without a grinding path. It illustrates the resulting particle size distribution depending on feed material, crusher settings and material properties, and supports the design of downstream screening and conveying stages.
Particle Size Curve with Grinding Path | HPI Series
This particle size curve illustrates the screening curve of the HPI primary impact crusher with grinding path. Due to the additional oversize control, the particle size distribution shifts toward more defined final product sizes. The diagram supports the planning of screening circuits, recirculation rates and the desired product quality.
Application Areas of the HPI Primary Impact Crusher
The HAZEMAG HPI primary impact crusher is used wherever large feed material must be reliably and energy-efficiently pre-crushed. Typical applications include the cement and aggregates industry, quarrying operations, and the recycling of concrete and demolition waste. With the optional grinding path, the crushing process can be flexibly adapted to different material properties – from soft limestone to harder dolomite.
The robust design of the impact crusher allows continuous operation even under harsh conditions. Thanks to its high reduction ratio, the machine produces a uniform particle size distribution, creating ideal conditions for downstream grinding mills or screening processes.
Typical Materials
- Mineral raw materials such as limestone, dolomite, granite, basalt, sandstone and shale
- Raw materials for cement and construction materials production such as lime, gypsum, clay and chalk
- Recycling materials such as concrete, reinforced concrete, demolition waste, bricks and masonry
- Aggregates such as gravel and crushed sand for asphalt and concrete mixtures
Example from Mineral and Industrial Processing
In a typical mineral processing plant, a HAZEMAG impact crusher can be used in a downstream crushing stage to further reduce pre-crushed material in a controlled manner. Depending on the application, materials such as limestone or comparable aggregates may be processed where a defined particle shape and consistent final size are required. Through impact-based crushing, the material can be efficiently fractured and optimally prepared for the subsequent screening stage.
Impact crushers can also be used in industrial processing operations to further process mineral bulk materials and achieve a stable screening curve for downstream process steps. This results in a homogeneous end product that can be reliably used in further industrial applications while supporting stable and efficient plant operation.
After-Sales Service
HAZEMAG supports you even after the commissioning of your impact crusher with a worldwide service and support network. Our goal: maximum plant availability, predictable maintenance intervals and long-term operational efficiency.
Downloads
Our Service at a Glance
Spare Parts via HAZparts – Order Original Quality Online
Through HAZparts, you can order original spare and wear parts specifically designed for the HPI primary impact crusher. The range includes robust blow bars, impact aprons, grinding paths, as well as rotor and hydraulic components for the primary crushing stage. Using precisely fitting original parts ensures high throughput rates, stable pre-crushing of large feed material and long-term plant availability.
Available Spare and Wear Parts for the HPI Primary Impact Crusher:
- Blow bars, impact aprons and grinding path components
- Rotor assemblies, rotor shafts, bearings and sealing systems
- Wear and protection plates for the crushing chamber and housing
- Hydraulic components for gap adjustment and overload protection
Your Advantages with HAZparts for the HPI Series:
- Direct online ordering of original HAZEMAG spare parts
- Precisely fitting components specifically designed for the HPI primary impact crusher
- High spare parts availability for short downtime
- Technical support from HAZEMAG service experts for selection and application
Your Project Starts with the Right IMPACT CRUSHER HPI
Whether for new equipment, retrofits or modernization, HAZEMAG supports you from the initial consultation to the full integration of the impact crusher into your plant.
Our experts help you select the right impact crusher, precisely tailored to your materials, required throughput and process objectives.
Benefit from:
- Individual consultation by HAZEMAG specialists
- Technical design based on your specific process requirements
- Access to current datasheets and performance parameters
- Direct contact with the manufacturer – without intermediaries
Configuration of the HAZEMAG IMPACT CRUSHER
As the HPI series is designed for high throughput rates and large feed sizes, it is specifically engineered for demanding primary crushing applications in high-capacity processing plants. Different machine sizes and equipment options allow precise adaptation to material characteristics, production targets and plant layouts – even under heavy loads and continuous operation.
- HAZtronic® system for automatic control and monitoring of the crushing process
- Continuous adjustment of the impact aprons according to the feed material
- Real-time monitoring of all operating parameters via the plant control system
- Optional integration into SCADA or PLC systems
- Operation with or without a grinding path, depending on the required reduction ratio
- Adjustable impact plates for flexible particle size distribution
- Wear-resistant internal liners for abrasive materials
- Selection of different rotor types
- Blow bars available in various alloys (manganese, chrome, martensitic)
- Hydraulic overload protection system to protect against tramp material
- Optional direct drive or belt drive
- Optional energy-efficient motors with variable frequency drives (VFD)
- Optimized drive performance for consistently high throughput

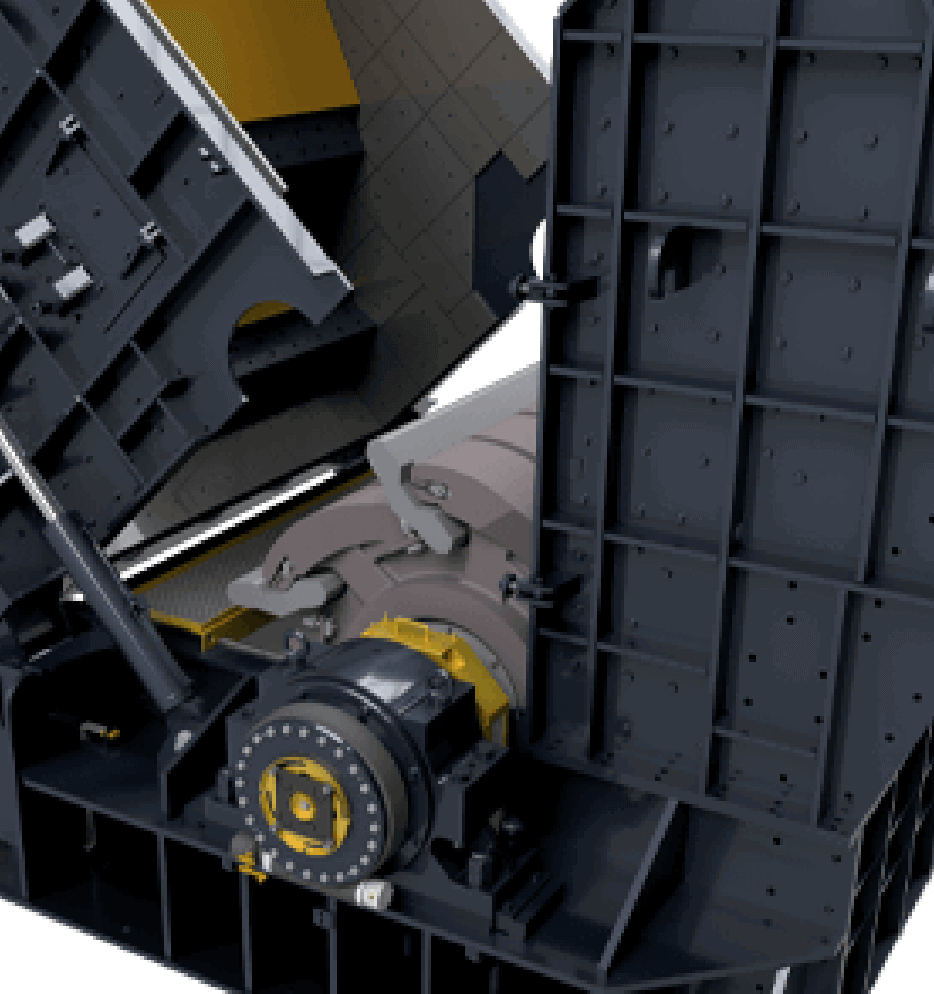

- Hydraulic opening systems for fast access to the crushing chamber
- Automatic lubrication of bearings and joints
- Mechanical safety locks and pressure relief valves
- Integration into existing conveying or screening systems
Buy a Used IMPACT CRUSHER – Inspected & Directly from HAZEMAG
Used HAZEMAG primary impact crushers also stand for reliability, performance and proven quality.
Before resale, all machines are thoroughly inspected, serviced and refurbished with original parts to ensure the well-known HAZEMAG performance and reliability.
Tip: Available models vary regularly – from primary to secondary and tertiary impact crushers. Our team will be happy to assist you in selecting the right machine.
Your advantages when buying used equipment:
- Technically inspected and factory-refurbished machines
- Original parts and upgrades according to the latest HAZEMAG standards
- Cost-effective alternative with full functional reliability
- Worldwide shipping and commissioning by HAZEMAG service
Additional Equipment for Other Process Stages
In addition to the HPI impact crusher, HAZEMAG offers a range of other crusher types designed for different process stages and material requirements.
This allows you to select the optimal combination of performance, efficiency and cost-effectiveness for every application.
Further Important Information about the HAZEMAG IMPACT CRUSHER
The HPI primary impact crusher reduces the specific energy consumption per ton of material through its optimized rotor geometry, adjustable impact aprons and demand-controlled drives.
By using energy-efficient motors and variable frequency drives (VFD), energy consumption can be precisely adapted to the material characteristics and required throughput.
Optional HAZconnect® monitoring enables continuous tracking of kWh/t values and the documentation of events and plant availability for each production cycle.
Key Figures (Example Values):
- Specific energy consumption: 3 – 5 kWh/t (depending on material)
- Dust / noise concept: enclosure with extraction system and soundproof panels
- Operating mode: variable frequency-controlled direct or belt drive (VFD)
The HPI impact crusher meets all current CE safety standards.
Maintenance-friendly access points, E-stop circuits and hydraulically operated opening systems ensure maximum safety during operation and maintenance work.
Highlights:
- Protection and interlocking systems with sensor monitoring
- Hydraulic overload protection system to protect the rotor from tramp material
- ATEX and high-temperature options for special environments
The HPI primary impact crusher can be easily integrated into existing processing lines – from material feeding to screening.
HAZEMAG supports you in planning the material flow, mechanical integration and automation.
Typical Flow:
Feeder → HPI → Screen → Conveying system
Interfaces:
- Control: HAZtronic®, SCADA/PLC integration
- Mechanical: inlet/outlet hoppers, chutes, bunker connections
- Signals: process and fault messages, operating data
The HPI delivers low operating costs over its entire lifecycle through reduced energy consumption, low wear rates and short maintenance downtime.
Based on your process data, HAZEMAG provides an individual ROI assessment that takes energy and maintenance savings into account.
Example Calculation:
ROI = (Annual energy / wear savings – additional investment) ÷ investment
Typical Inputs:
- Throughput: {t/h}
- Operating hours: {h/year}
- Energy price: {kWh price}
- Wear costs: {€/t}
Questions and Answers about the Primary Impact Crusher HPI
An impact crusher works using impact energy. The material is accelerated by rotating blow bars and thrown against impact plates, where it breaks into smaller pieces. This process produces a uniform particle size distribution with high throughput.
A crusher is a machine used for the industrial size reduction of rock, ores and recycling materials. Common types include impact crushers, jaw crushers, cone crushers and roll crushers. The choice depends on material type, feed size, desired product size, throughput, energy consumption and wear requirements.
An impact crusher reduces material using impact energy. The feed material is accelerated and thrown against impact plates, resulting in high reduction ratios and a well-shaped final product. Impact crushers are commonly used in the cement industry, aggregates production, and in the recycling of concrete and demolition waste.
A roll crusher, in contrast, works with compressive and shear forces between two counter-rotating rolls. This process produces a very uniform particle size distribution with low fines and is particularly energy-efficient. Typical applications include the processing of limestone, clay, gypsum, coal and phosphate materials.
A primary impact crusher mainly processes medium-hard to hard rock as well as mineral materials with large feed sizes. Typical materials include limestone, dolomite, marl, sandstone, as well as concrete and demolition waste from recycling applications.
Due to its crushing characteristics, the primary impact crusher is particularly suitable for applications in the cement industry, aggregates production, quarrying and recycling, where high throughput rates and a consistent particle shape are required.
The HAZtronic control system is an intelligent electronic system for the automatic adjustment and monitoring of crushers. It ensures that impact aprons or rolls are positioned precisely, safely and reproducibly, enabling optimized crushing performance and stable operating conditions.
