Key Features

High loading performance

in very small cross-section roadways & under difficult working conditions

High machine availability & low running costs

based on modulare structure for rapid machine assembly & deployment & proven components

Latest safety standard

in accordance to CE- and ATEX-Regulations

SIDE TIPPING LOADER | HSL 500

Side Tipping Loader | HSL 500

Electric omponents flameproof or non-flameproof version
Motor rating 37 kW
Pump flow 112 l/min
Bucket capacity 0.6 m³
Tramming speed 0.9 m/s
Gradeability (longitudinal) 20 degrees
Gradeability (transversal) 8 degrees
Loading performance (depending on tramming distance) 0.9 - 1.2 m³/min

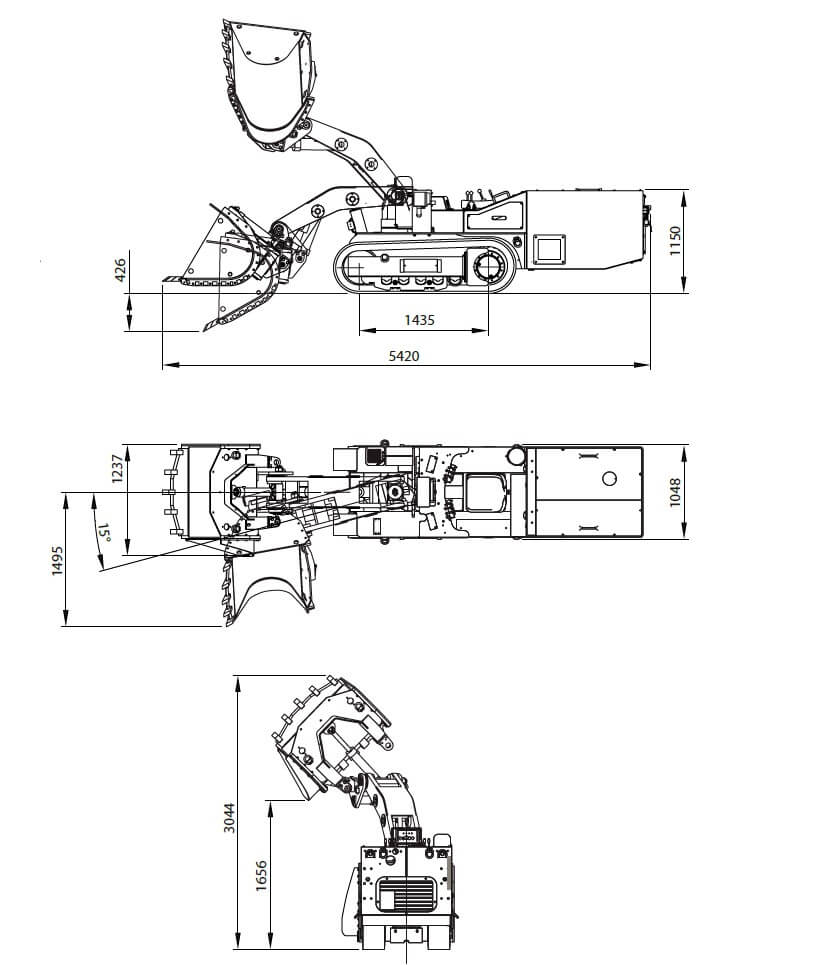

Length 5.332 mm
Width 1.048 mm
Height (without protective rrof) 1.140 mm
Height (with protective roof) 1.845 mm
Weight approx. 6.500 kg
Ground pressure 0.09 MPa
Ground clearnace power pack 270 mm
Ground clearnace crawler unit 185 mm
Boom swivelling angle 2 x 15°
Discharge height 2.000 mm
Digging depth 425 mm
Tearing force at bucket tooth 30 kN
Penetrating force (horizontal) 51 kN

Underground road development

Loading of rock in drill & blast technology

PRODUCT DESCRIPTION

The HAZEMAG Side Tipping Loader HSL 500 with a bucket capacity of 0.6 m3 is the reasonable loading machine for small and very small cross-section roadways.
The rugged design and use of components which have been tried and tested over many years of operation ensure a high machine availability and low running costs even under difficult working conditions.
The modular design is made for rapid machine assembly and deployment at the operating site and greatly facilitates servicing and maintenance.

Options:
■ protectiv roof (FOPS)

Attachments:
■ quick coupling device
■ drilling/ bolting device
the loader becomes the HAZEMAG Multifunctioning Loader HMF 500, for an extended us

Range of Loaders

Type Unit HSL 500 HSL 600 HSL 800 HSL 1200 HSL 1500 HSL 2000
Weight kg 6,5 10,8 12 14,9 16 24
Bucket volume l 150/600 300/600 800 1,200 1,500 2,000
Motor Rating kW 37 55 55/63 63/75 75/90 90

From 1980 on 141 machines for 18 customers in 12 countries with biggest machine populations in SOUTH Corea and Turkey.
